Description
TSP-CHOPacabra
TSP “CHOPacabra” Truck Cam Specs: 214/222 .550/.550 108 LSA 106 ICL
Introducing the CHOPacabra cam! This is a nasty little beast of cam. Designed to work with LS6 valve springs and a factory torque converter. If you’re looking for that mean, snarling sound and performance that will leave your opponent second guessing what he just saw…this is it!
- Engines best suited for: 4.8, 5.3, 5.7, 6.0 (Equipped with cathedral port heads)
- Desired Compression ratio for cam: 9.5:1+
- Recommended Springs Required: GM LS6 Beehive Valve Springs
- Aftermarket Stall Converter Required: No. Factory converter friendly!
- Upgraded Rear Gear Required: No
- Operating RPM Range: 1200-6500

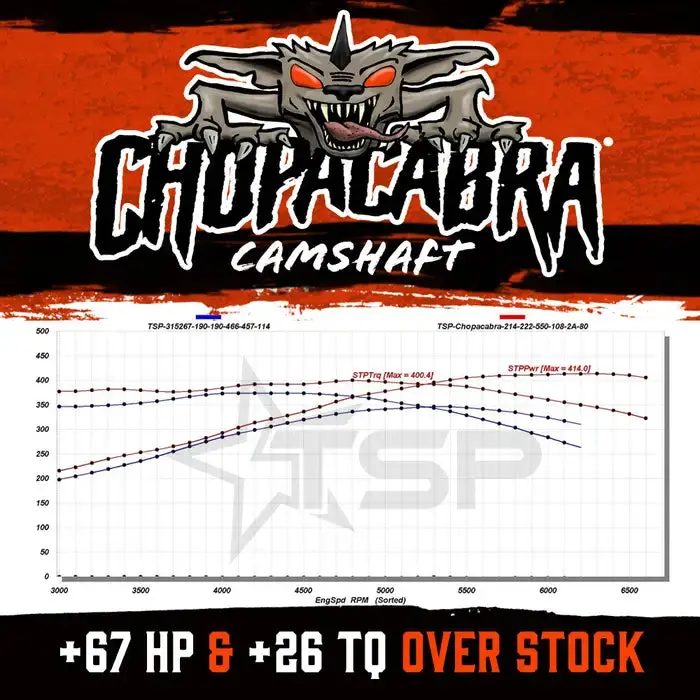

- Power Increase: Under testing it gained 67hp and 26ft lbs of torque at the crank
- Drivability: Great driveability with an amazing chop!
Dyno Test Motor Specs: Stock Gen IV 5.3, Stock 862 heads with GM LS6 Valve Springs, TBSS intake manifold.
| Chop Level | Some chop |
|---|---|
| Valve Spring Compatibility | Upgraded valve springs required |
| Lobe Separation Angle | 108 |
| Operating RPM Range | 1200-6500 |
| Pushrod Compatibility | Chromoly pushrods required |
| Duration | 214/222 |
| Aspiration | Naturally aspirated |
| Application | Truck |
| Overlap | 2 degrees |
| Tune Required | Tune required |
| Lift | .550/.550″ |
| Select Year | Select Make | Select Model | Select Generation |
|---|---|---|---|
| Gen III LS 4.8/5.3 | |||
| Gen III LS 5.7/6.0 | |||
| Gen IV LS 4.8/5.3 | |||
| Gen IV LS 6.0/6.2 | |||
| 1998 | Chevrolet | Camaro | Camaro (1993-2002) |
| 1999 | Chevrolet | Camaro | Camaro (1993-2002) |
| 2000 | Chevrolet | Camaro | Camaro (1993-2002) |
| 2001 | Chevrolet | Camaro | Camaro (1993-2002) |
| 2002 | Chevrolet | Camaro | Camaro (1993-2002) |
| 2010 | Chevrolet | Camaro | Camaro (2010-2015) |
| 2011 | Chevrolet | Camaro | Camaro (2010-2015) |
| 2012 | Chevrolet | Camaro | Camaro (2010-2015) |
| 2013 | Chevrolet | Camaro | Camaro (2010-2015) |
| 2014 | Chevrolet | Camaro | Camaro (2010-2015) |
| 2015 | Chevrolet | Camaro | Camaro (2010-2015) |
| 1997 | Chevrolet | Corvette | C5 Corvette (1997-2004) |
| 1998 | Chevrolet | Corvette | C5 Corvette (1997-2004) |
| 1999 | Chevrolet | Corvette | C5 Corvette (1997-2004) |
| 2000 | Chevrolet | Corvette | C5 Corvette (1997-2004) |
| 2001 | Chevrolet | Corvette | C5 Corvette (1997-2004) |
| 2002 | Chevrolet | Corvette | C5 Corvette (1997-2004) |
| 2003 | Chevrolet | Corvette | C5 Corvette (1997-2004) |
| 2004 | Chevrolet | Corvette | C5 Corvette (1997-2004) |
| 2005 | Chevrolet | Corvette | C6 Corvette (2005-2013) |
| 2006 | Chevrolet | Corvette | C6 Corvette (2005-2013) |
| 2007 | Chevrolet | Corvette | C6 Corvette (2005-2013) |
| 2008 | Chevrolet | Corvette | C6 Corvette (2005-2013) |
| 2009 | Chevrolet | Corvette | C6 Corvette (2005-2013) |
| 2010 | Chevrolet | Corvette | C6 Corvette (2005-2013) |
| 2011 | Chevrolet | Corvette | C6 Corvette (2005-2013) |
| 2012 | Chevrolet | Corvette | C6 Corvette (2005-2013) |
| 2013 | Chevrolet | Corvette | C6 Corvette (2005-2013) |
| 2004 | Cadillac | CTS-V | CTS-V (2004-2007) |
| 2005 | Cadillac | CTS-V | CTS-V (2004-2007) |
| 2006 | Cadillac | CTS-V | CTS-V (2004-2007) |
| 2007 | Cadillac | CTS-V | CTS-V (2004-2007) |
| 2009 | Cadillac | CTS-V | CTS-V (2008-2015) |
| 2010 | Cadillac | CTS-V | CTS-V (2008-2015) |
| 2011 | Cadillac | CTS-V | CTS-V (2008-2015) |
| 2012 | Cadillac | CTS-V | CTS-V (2008-2015) |
| 2005 | Cadillac | Escalade | Escalade (2002-2006) |
| 2008 | Cadillac | Escalade | Escalade (2008-2014) |
| 2009 | Cadillac | Escalade | Escalade (2008-2014) |
| 2010 | Cadillac | Escalade | Escalade (2008-2014) |
| 2011 | Cadillac | Escalade | Escalade (2008-2014) |
| 2012 | Cadillac | Escalade | Escalade (2008-2014) |
| 2013 | Cadillac | Escalade | Escalade (2008-2014) |
| 1999 | Chevrolet | Silverado 1500 | Silverado 1500 (1999-2006) |
| 2000 | Chevrolet | Silverado 1500 | Silverado 1500 (1999-2006) |
| 2001 | Chevrolet | Silverado 1500 | Silverado 1500 (1999-2006) |
| 2002 | Chevrolet | Silverado 1500 | Silverado 1500 (1999-2006) |
| 2003 | Chevrolet | Silverado 1500 | Silverado 1500 (1999-2006) |
| 2004 | Chevrolet | Silverado 1500 | Silverado 1500 (1999-2006) |
| 2005 | Chevrolet | Silverado 1500 | Silverado 1500 (1999-2006) |
| 2006 | Chevrolet | Silverado 1500 | Silverado 1500 (1999-2006) |
| 2007 | Chevrolet | Silverado 1500 | Silverado 1500 (2007-2013) |
| 2008 | Chevrolet | Silverado 1500 | Silverado 1500 (2007-2013) |
| 2009 | Chevrolet | Silverado 1500 | Silverado 1500 (2007-2013) |
| 2010 | Chevrolet | Silverado 1500 | Silverado 1500 (2007-2013) |
| 2011 | Chevrolet | Silverado 1500 | Silverado 1500 (2007-2013) |
| 2012 | Chevrolet | Silverado 1500 | Silverado 1500 (2007-2013) |
| 2013 | Chevrolet | Silverado 1500 | Silverado 1500 (2007-2013) |
