Description
RR300-SF

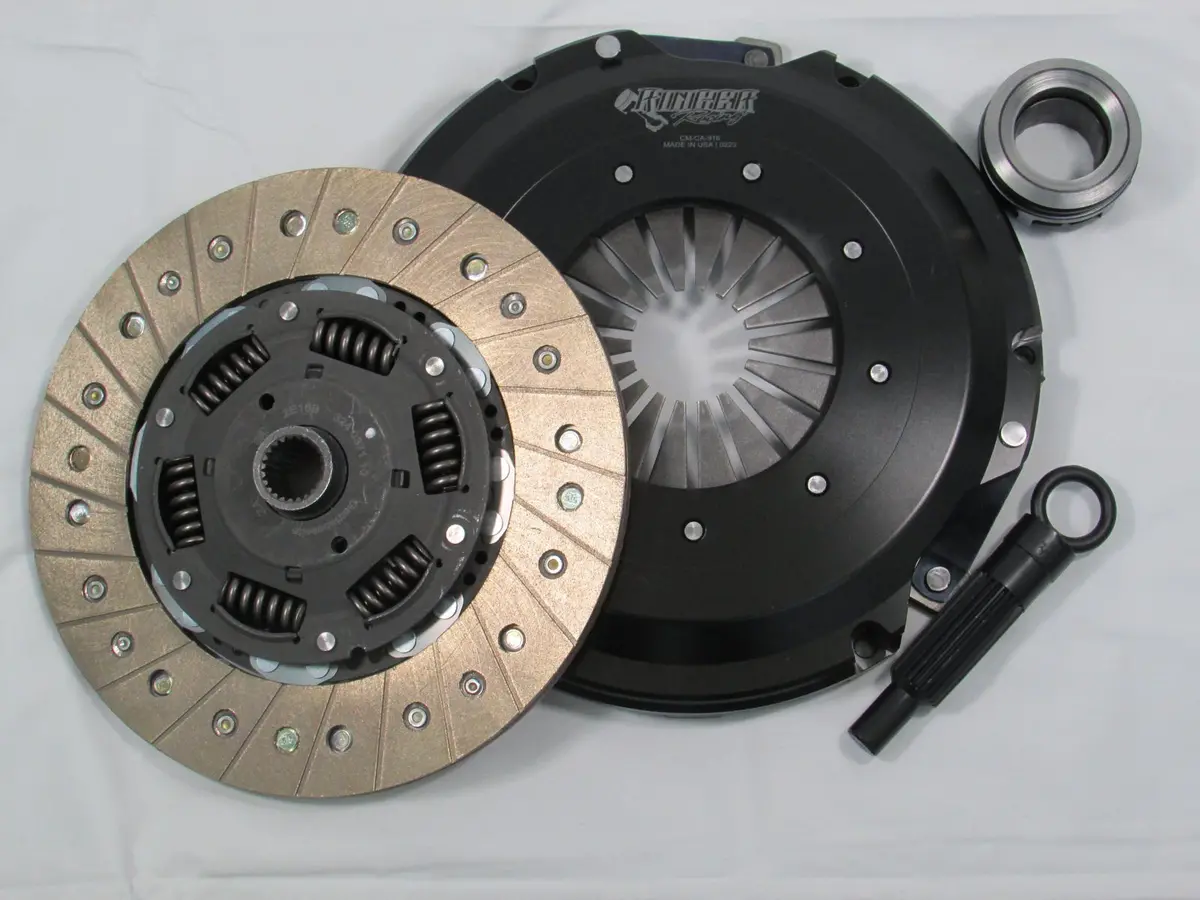

Kit includes:
- Ringer Racing Clutch Kit
- Clutch Masters Flywheel
- Throw-out Bearing
- Alignment tool
Description
This is a Private Label kit built by Clutch Masters exclusively for Ringer Racing
Applications:
- Audi A4 2.0T (2009-2016)
- Audi A5 2.0T (2010-2016)
Kit includes:
- Ringer Racing Clutch Kit
- Clutch Masters Flywheel
- Throw-out Bearing
- Alignment tool
Stage 3
- Heavy-duty street & racing system

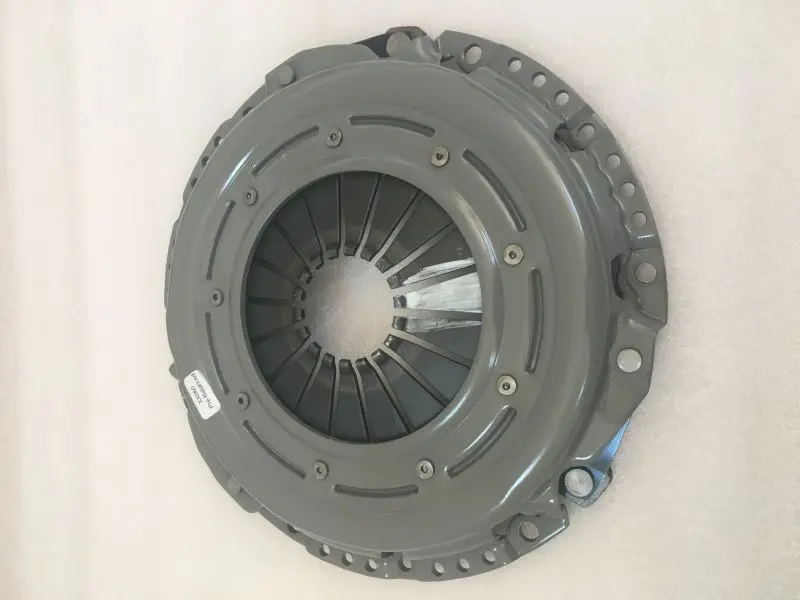

- Heavy-Duty reinforced pressure plate
- Hi-Leverage pressure ring design
- Ductile Iron Casting
- Sprung hub/cushioned Steel backed disc
- Steel backed Organic/Cerametalic Material
Stage 3+
- Modified pressure plate for 8% more clamping load
- Heavy-Duty reinforced pressure plate
- Hi-Leverage pressure ring design
- Sprung hub/cushioned Steel backed disc
- Steel backed Organic/Cerametalic Material
- Slightly stiffer pedal
Stage 4
- Heavy-duty street & racing system
- Heavy-Duty reinforced pressure plate
- Hi-Leverage pressure ring design
- Sprung hub/cushioned Steel backed disc
- Full Face Cerametalic Material on both sides
Stage 5
- Modified pressure plate for 8% more clamping load
- Heavy-Duty reinforced pressure plate
- Hi-Leverage pressure ring design
- Sprung hub/cushioned Steel backed disc
- Full Face Cerametalic Material on both sides
- Slightly stiffer pedal
Torque Rating at the Flywheel
- Stage 3 – 510 ft lbs
- Stage 3+ – 550 ft lbs
- Stage 4 – 630 ft lbs
- Stage 5 – 680 ft lbs
Hydraulic Option:
- Stainless Clutch Line for stock slave cylinder
- Clutch Masters billet slave cylinder kit with clutch line
Flywheel Options:
- Steel Flywheel = 28 lbs
- Billet Steel Flywheel with Billet Insert = 25.5 lbs
Bolt torque specs
- Flywheel bolts for the 2 halves of the flywheel = 55 ft lbs
- Pressure plate bolts = 25 ft lbs
- Dab of loctite on all bolts
Note: Torque specs for OEM flex plate to flywheel bolts is 60 nm or 44.25 ft lbs.
