Ringer Racing Billet Clutch and Flywheel Kit for Audi B8/B8.5 A4/A5/S5 (2.0T)

Description

RR300-BSC-SF

Kit includes:

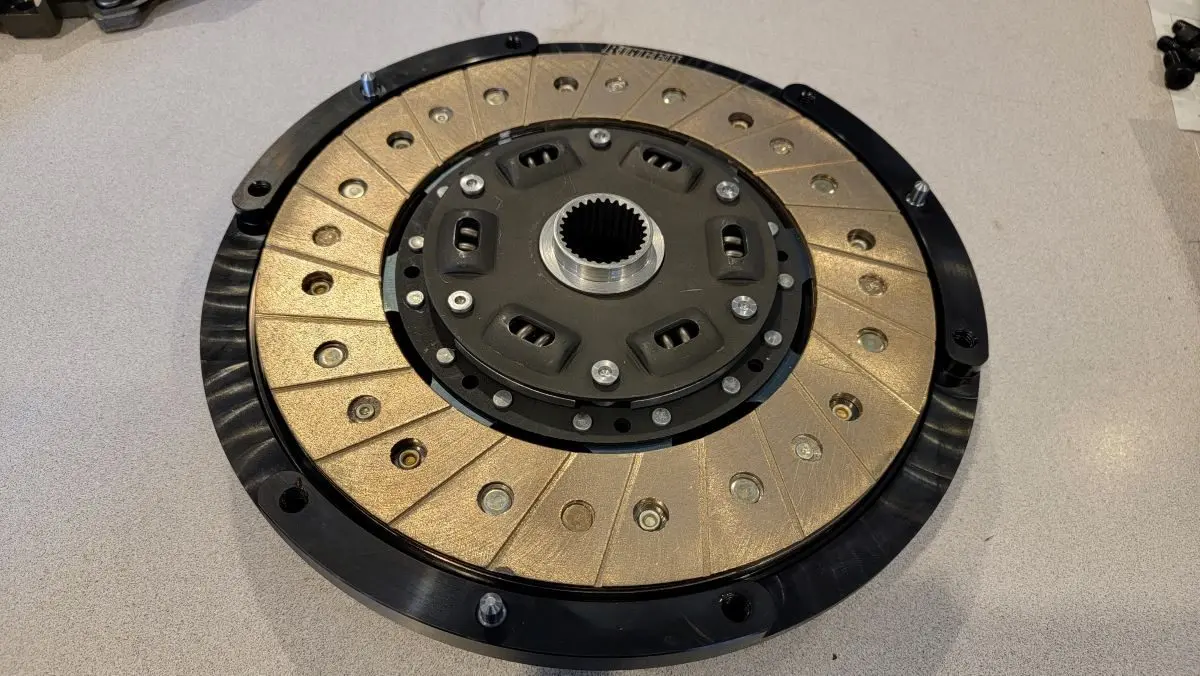

• Ringer Racing 240mm Billet Series Clutch Kit

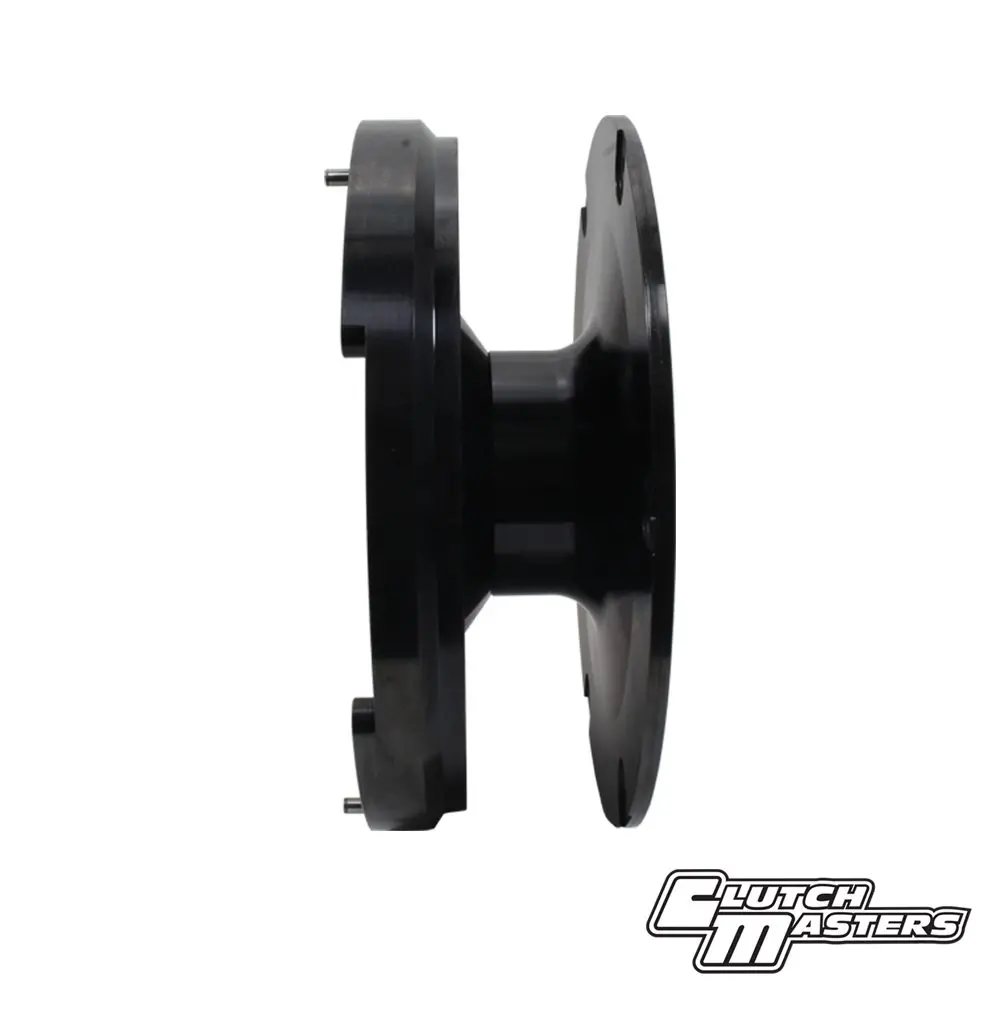

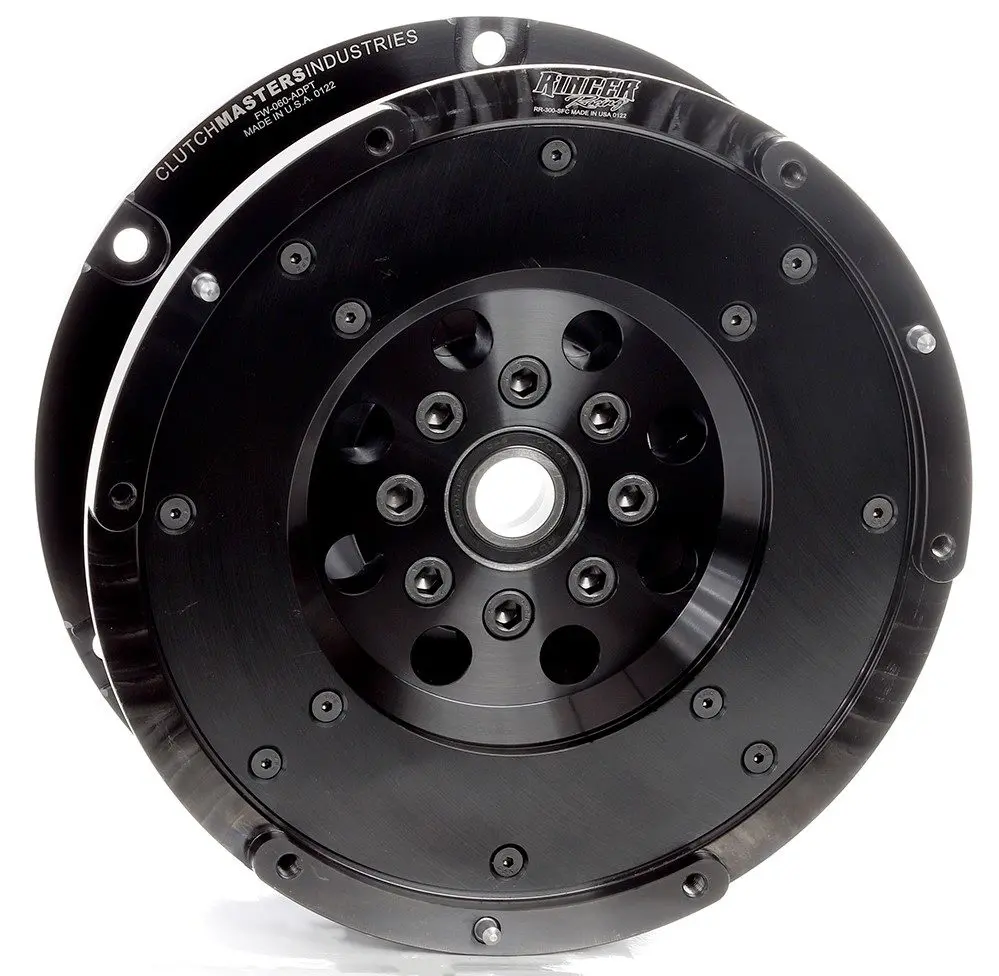

• Billet Steel Flywheel
• Throw-out Bearing

Description

This is a Private Label kit built by Clutch Masters exclusively for Ringer Racing.

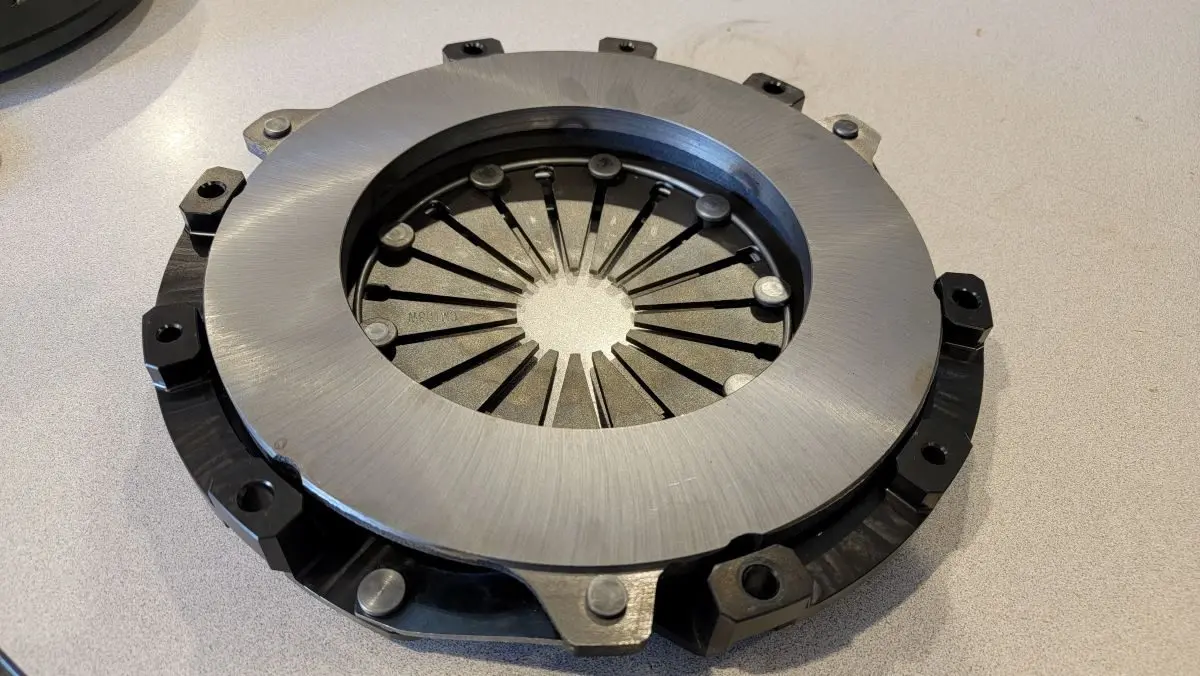

The Ringer Racing Billet Series uses a billet aluminum pressure plate cover combined with choice of 850 diaphragm, these diaphragms have 7-14% more clamp load and hold then the highest holding standard Ringer Racing 240mm clutch kit that uses the XR pressure plate. Making these one of the highest holding single 240mm disk street clutch kits on the market.

Kit includes:

• Ringer Racing 240mm Billet Series Clutch Kit
• Billet Steel Flywheel
• Throw-out Bearing
• Alignment tool

Stage 3

• Street Clutch

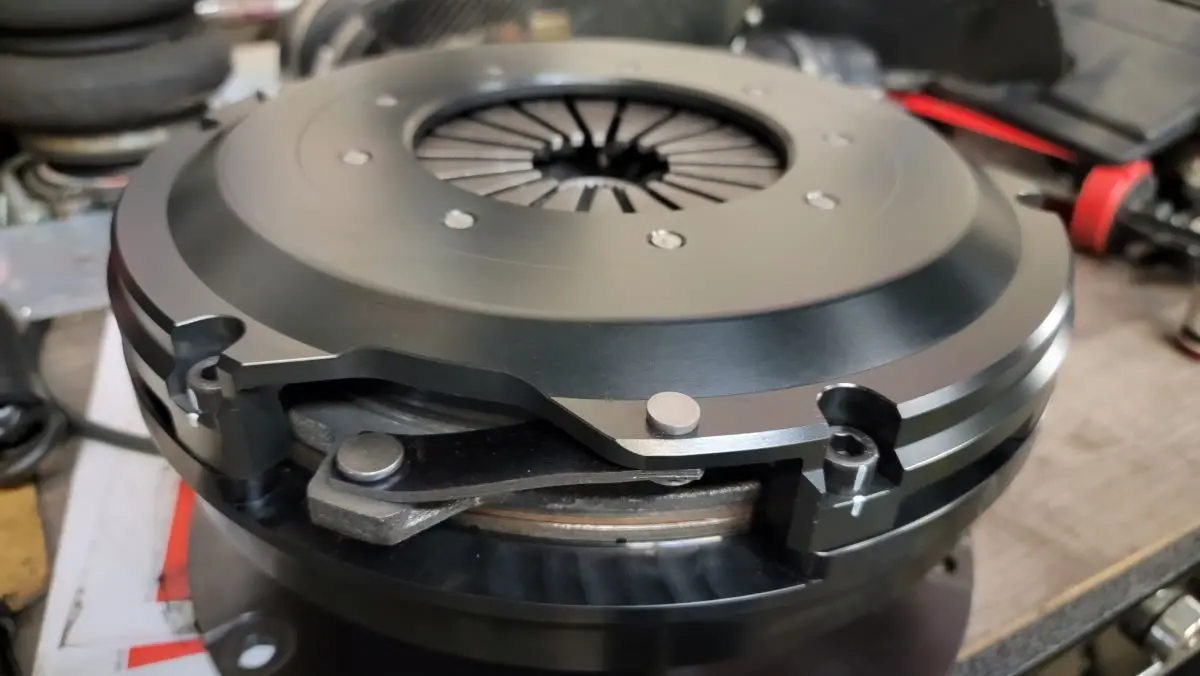

• Heavy-Duty Billet Aluminum pressure plate cover
• Hi-Leverage pressure ring design
• Ductile Iron Casting

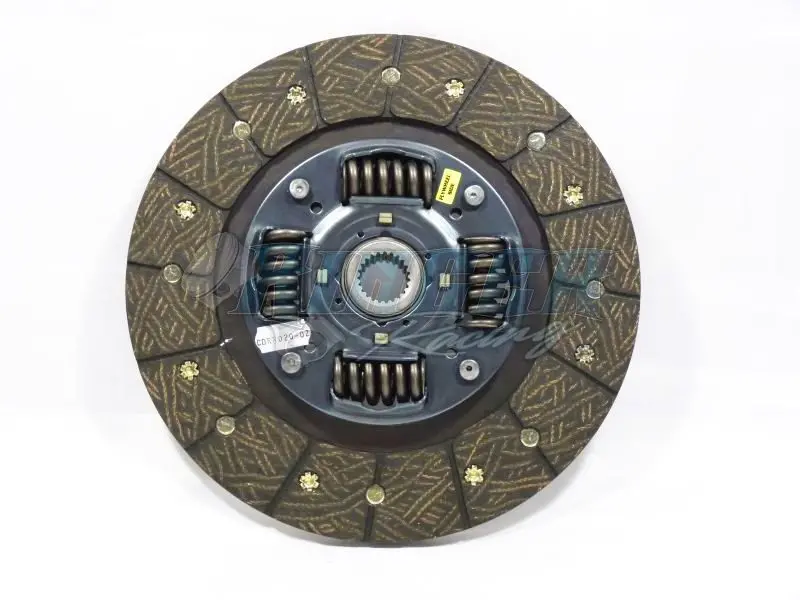

• Sprung hub/cushioned Steel backed disc
• Steel backed Organic/Cerametalic Material
• Blue Diaphragm

Stage 3+

• Street Cutch
• Heavy-Duty Billet Aluminum pressure plate cover
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic/Cerametalic Material
• White Diaphragm – Increased clamp load and pedal resistance

Stage 4

• Street/Race Clutch
• Heavy-Duty Billet Aluminum pressure plate cover
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametalic Material on both sides
• Blue Diaphragm

Stage 4+

• Street/Race Clutch
• Heavy-Duty Billet Aluminum pressure plate cover
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametalic Material on both sides
• White Diaphragm – Increased clamp load and pedal resistance

Hydraulic options:

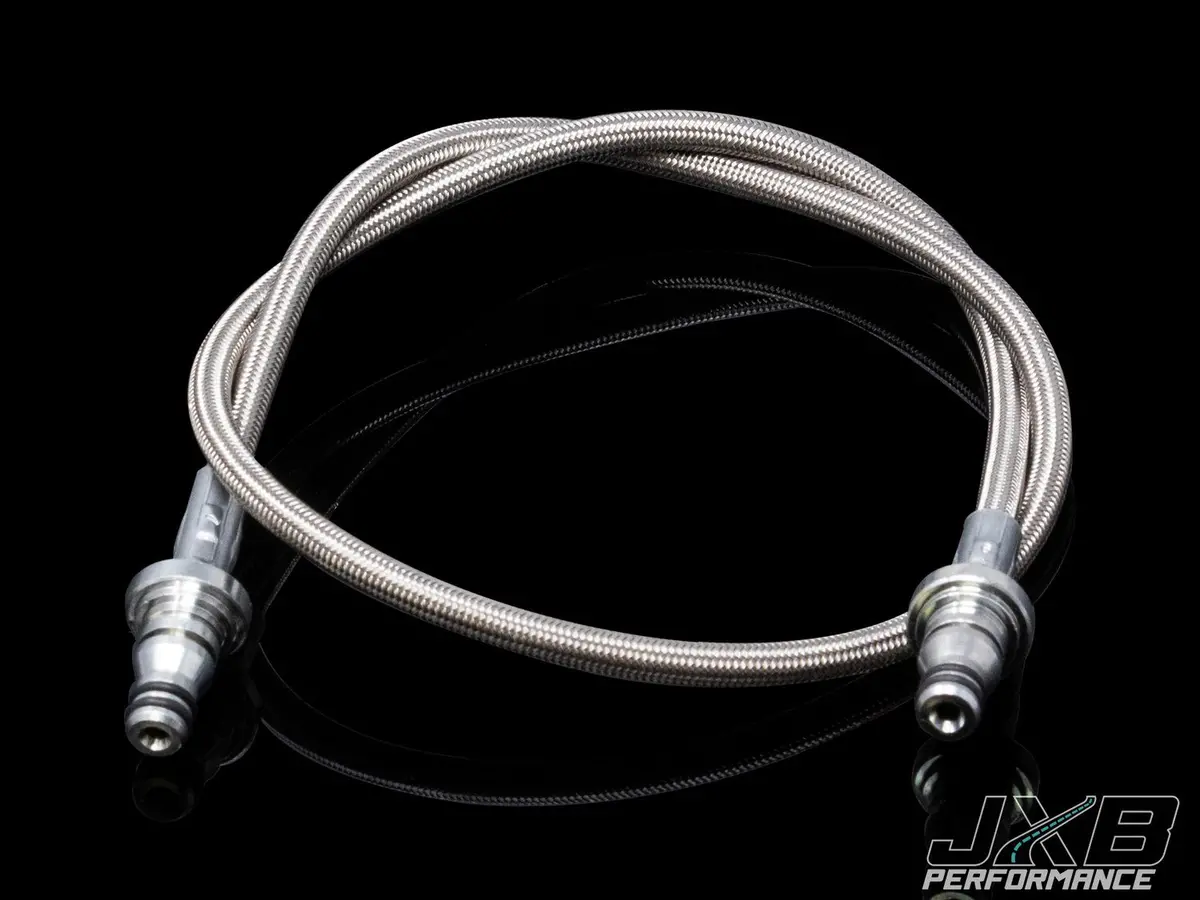

• Stainless Steel Clutch Line for OEM slave cylinder

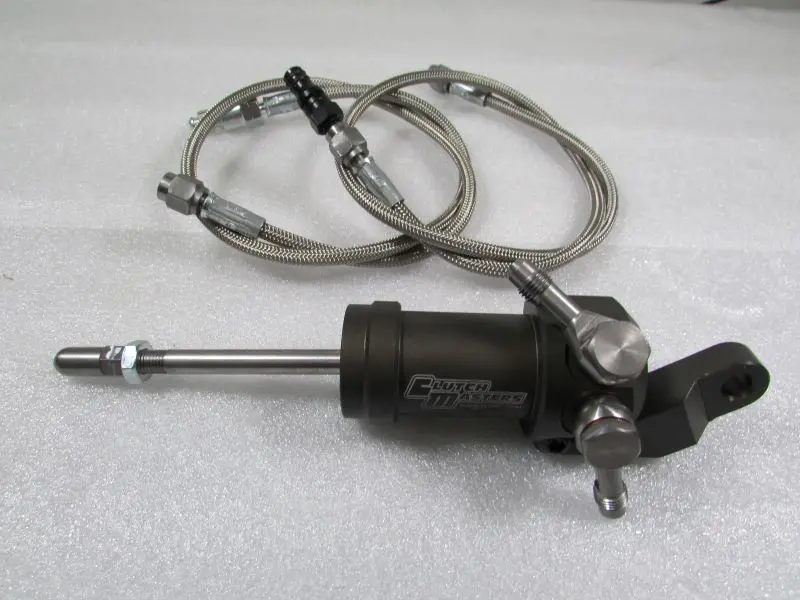

• CM billet slave cylinder kit with clutch line
• Add the Clutch Masters Hydraulic Throw-out Bearing kit which plugs directly into the master cylinder (replaces clutch fork, fork bearing and slave cylinder).

Flywheel Options:

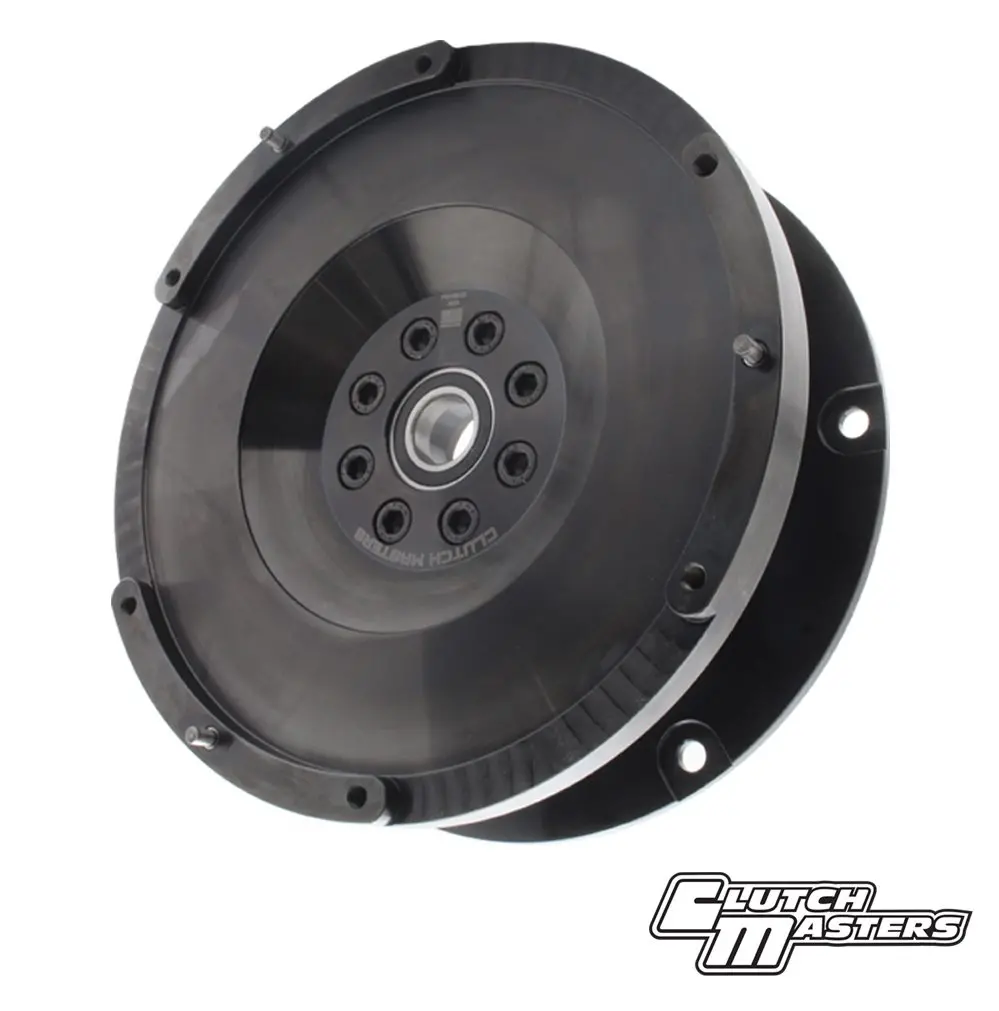

• Steel Flywheel = 28 lbs

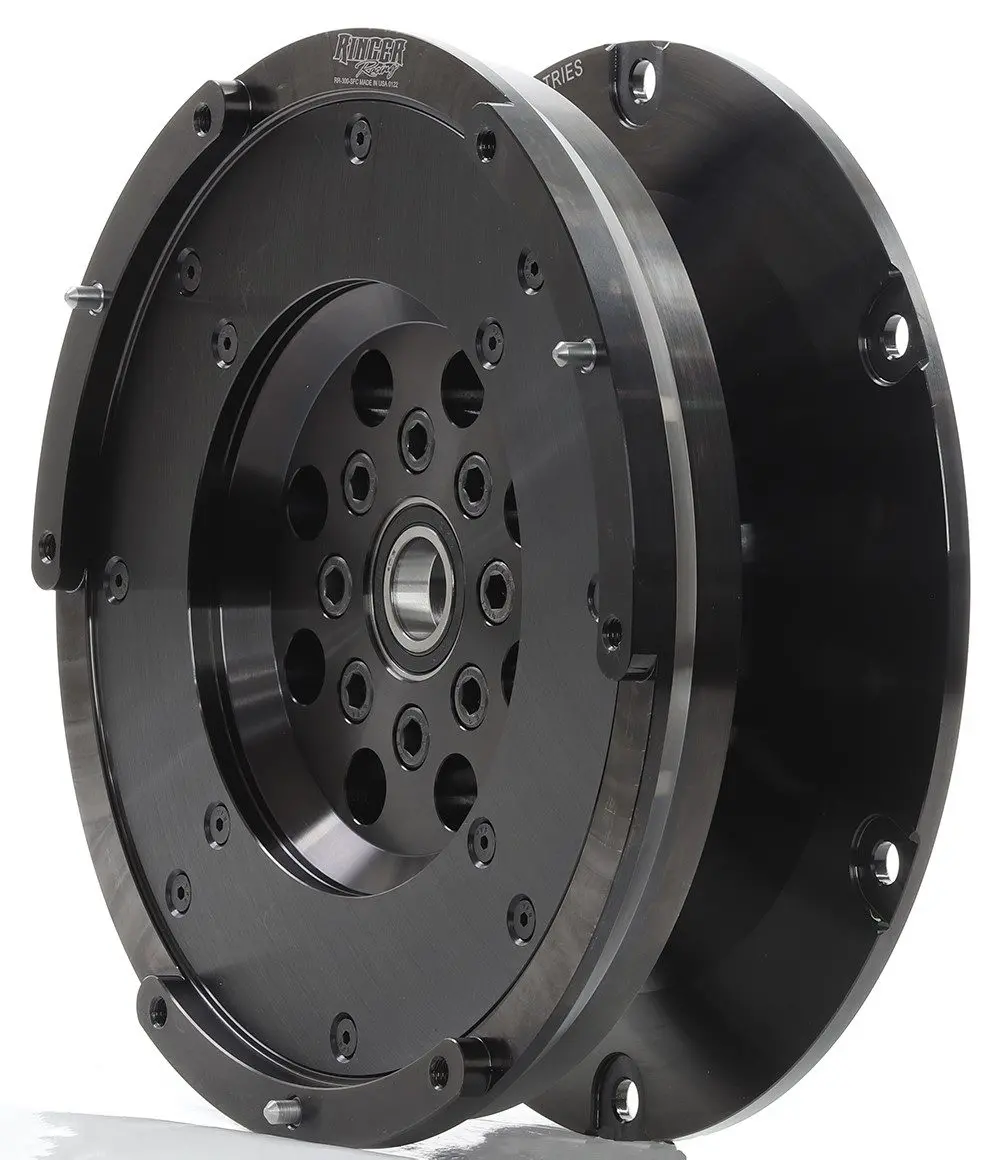

• Billet Steel Flywheel with Billet Insert = 25.5 lbs

Torque Rating at the Flywheel

• Stage 3 – 845 ft lbs
• Stage 3+ – 900 ft lbs
• Stage 4 – 1050 ft lbs
• Stage 4+ – 1125 ft lbs

Note: Bolt torque specs

• Flywheel bolts for the 2 halves of the flywheel = 55 ft lbs
• Pressure plate bolts = 25 ft lbs
• Dab of loctite on all bolts

Note: Torque specs for OEM flex plate to flywheel bolts is 60 nm or 44.25 ft lbs.
