Description
AS-2534

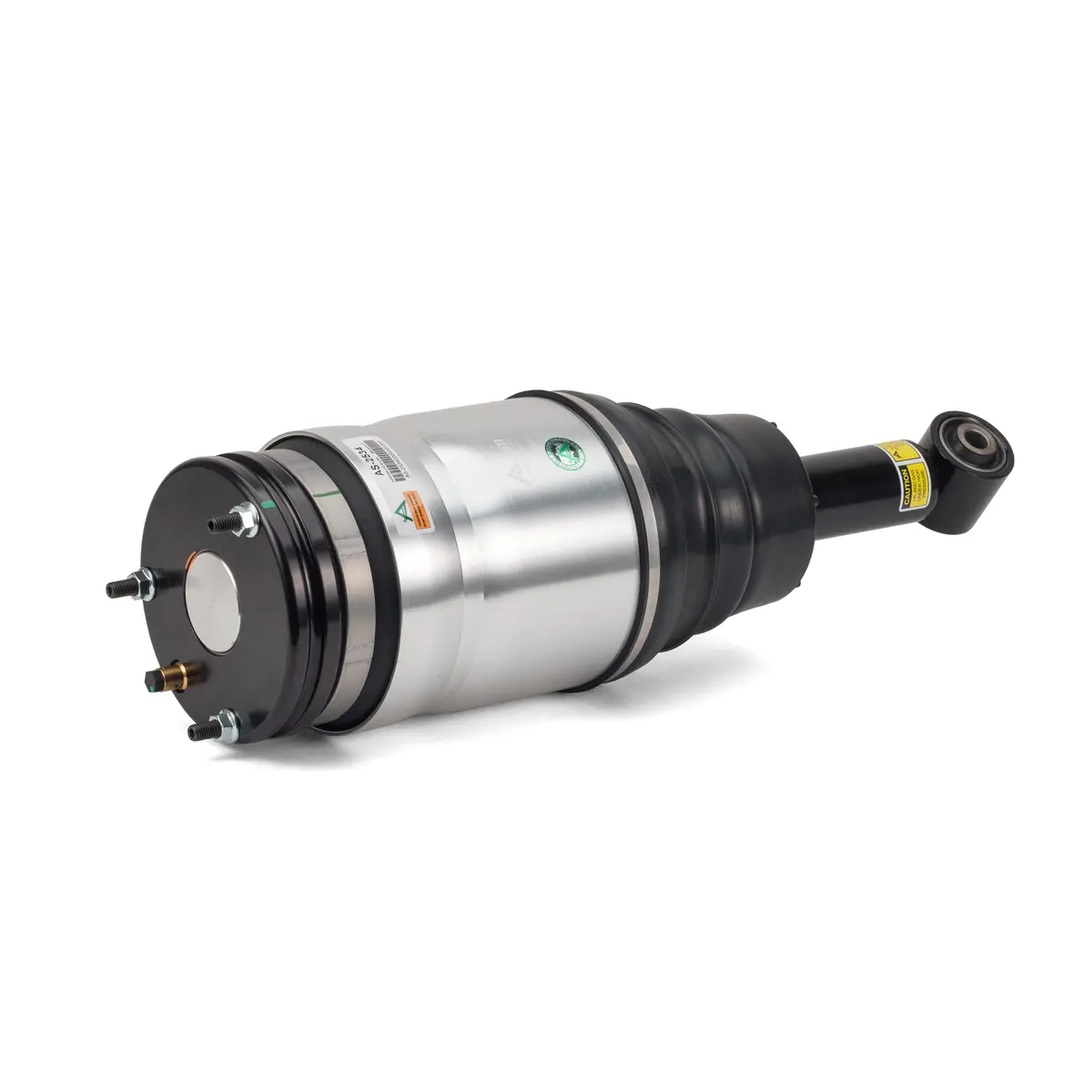

New Air Suspension Strut
Arnotts new rear strut for the 05-09 Land Rover LR3, 10-16 LR4, 2006-2013 Range Rover Sport is new and not remanufactured. This aftermarket Land Rover replacement strut is designed and assembled in the USA. Arnotts exclusive design features a new custom-made and tuned shock absorber and is assembled with a multi-ply air spring bladder manufactured by ContiTech. The strut assembly also features heavy duty crimping rings, new seals, air fitting and dust cover.
- ContiTech Multi-Ply Air Bladder
- Extra Heavy-Duty Crimping Rings
- Replace in Pairs
| Adjustable Compression: |
No |
|
|
|
|
|
| Bearing Plate Included: |
No |
|
| Bladder Heavy Duty Crimping Rings Included: |
Yes |
|
| Body End Measuring Point: |
Center Eye |
|
|
|
|
| Coil Over Springs Included: |
N/A |
|
|
|
| Internal Damper Type: |
Hydraulic |
|
| Lower Mount Type: |
Loop/Eyelet |
|
| Lower Mounting Isolator Included: |
No |
|
| Mounting Hardware Included: |
Yes |
|
| New Or Remanufactured: |
New |
|
| Progressive Spring Rate: |
Yes |
|
| Shock Absorber Rod End Measuring Point: |
Shoulder of Stud |
|
| Shock Spring Assisted: |
Yes |
|
| Spring Isolators Included: |
Yes |
|
| Spring Rate Type: |
Progressive |
|
|
|
|
|
| Upper Mounting Isolator Included: |
Yes |
|
| Make |
Model |
Year |
| Land Rover |
LR3 |
2005-2009 |
| Land Rover |
LR4 |
2010-2016 |
| Land Rover |
Range Rover Sport |
2006-2013 |
Interchange is provided as a reference. Please check part specifications to verify fit.
| Reference Number |
Reference Name |
| LR016418 |
Land Rover |
| LR032650 |
Land Rover |
| LR038096 |
Land Rover |
| LR041110 |
Land Rover |
| RPD501020 |
Land Rover |
| RPD501100 |
Land Rover |
