Description
AS-3284
New Air Suspension Shock

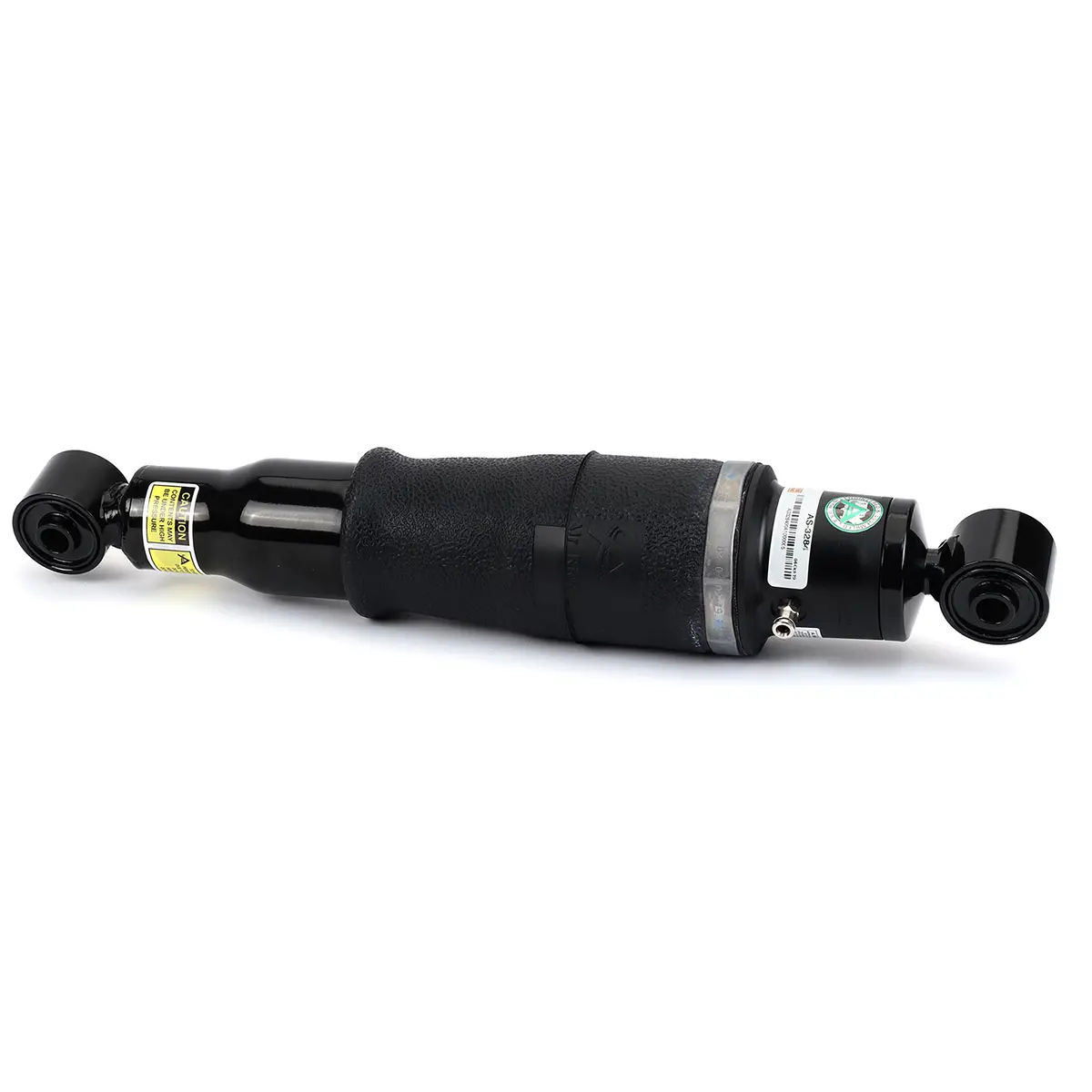

AS-3284 is a new, Arnott engineered, aftermarket air assisted shock for the Rear of the 2004-2010 Infinity QX56 (JA60) and Nissan Armada (WA60) 4WD only. This new assembly features a custom-tuned damper which provides an OE like ride along with a cross-hatch, multi-ply, ContiTech air sleeve designed to provide a long service life. The Arnott shock is built with Tier 1 components including heavy duty crimping rings, long lasting seals and a 5 MM push-to-connect airline fitting. This universal rear air assisted shock, which fits the Left or Right side, is designed and assembled in the USA.
- Multi-Ply ContiTech Air Sleeve
- Detailed Installation Manual Available
- Designed & Assembled in the USA
- Universal Shock Fits Left or Right Side
- Replace in Pairs
|
|
|
|
|
| Air Bladder Material: |
Rubber |
|
|
|
| Bearing Plate Included: |
No |
|
| Body End Measuring Point: |
Center Eye |
|
|
| Coil Over Springs Included: |
N/A |
|
| Compressed Length: |
269.5 (mm) |
|
| Dust Shield Material: |
N/A |
|
| Extended Length: |
400 (mm) |
|
|
|
| Heavy Duty Crimping Rings: |
Yes |
|
| Internal Construction Type: |
Twin-tube |
|
| Internal Damper Type: |
Hydraulic |
|
| Lower Mount Type: |
Loop/Eyelet |
|
| Mounting Hardware Included: |
No |
|
| Progressive Spring Rate: |
Progressive |
|
| Protective Aluminum Can: |
No |
|
| Shock Absorber Rod End Measuring Point: |
Shoulder of Stud |
|
| Shock Spring Assisted: |
Yes |
|
| Spring Isolators Included: |
Yes |
|
| Spring Rate Type: |
Progressive |
|
|
|
|
| Travel Length: |
130.5 (mm) |
|
| Upper Mount Type: |
Loop/Eyelet |
|
| Upper Mounting Isolator Included: |
Yes |
|
| Make |
Model |
Year |
| INFINITI |
QX56 |
2004-2010 |
| Nissan |
Armada |
2005-2015 |
