Description
FKS 228
Öhlins NIX 22 cartridge kits are based on our experience learned through decades of testing and racing in high tier championships. Our cartridge kits deliver loads of performance together with stable damping characteristics while ensuring great comfort and contributing to rider confidence. With the NIX22 cartridge kits this also available for motorcycles with conventional front forks.

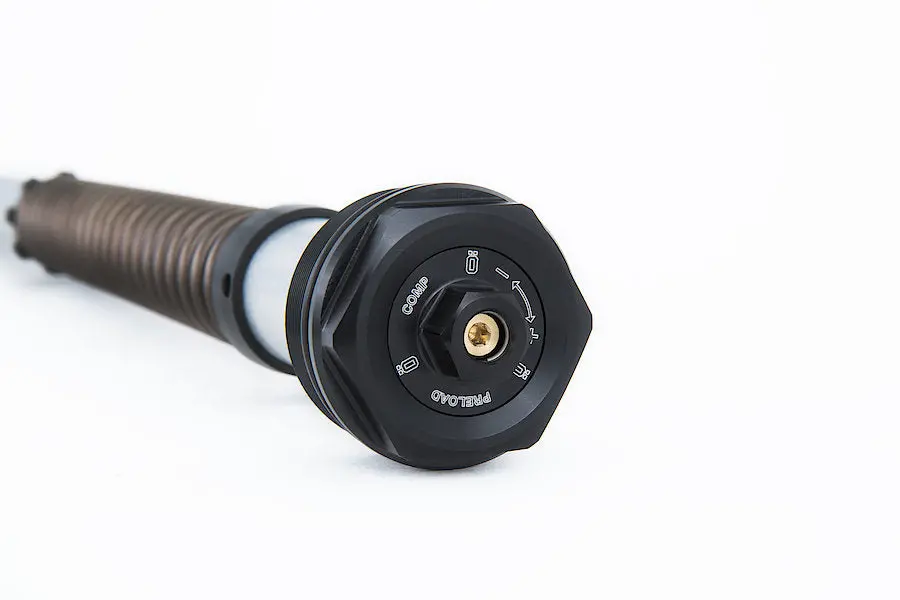

Each NIX 22 Öhlins cartridge kit has been tested extensively and tailor made to suit the individual requirements and characteristics for each individual bike. In combination with the well proven “NIX” design which features compression damping in the left leg and rebound damping in the right leg, it allows for a more precise function and stability. All adjustments including spring preload are made at the top cap.
The Öhlins cartridge system fits into the original front fork, springs are included. Please follow our recommendations regarding spring rates and oil in relation to rider’s weight and preference listed in the specific cartridge kit’s mounting instruction.
Installation Tools
For a correct installation of the cartridge kit into the standard front fork the following tools are required. These tools are not included and need to be purchased in addition at the Öhlins online shop.
- Stopper plate 8/10/12, part no. 02810-03
- Tool, pull up M8, part no. 01765-08
Additional Consumables
Various operating materials may be required for the professional installation of the cartridge kit. These are not included in the scope of delivery and can also be ordered via the Öhlins online shop. Please refer to the installation instructions for the respective product.
- Red grease, 100 g, part no. 00146-01
- Grease Statoil CaH 92, 100 g, part no. 00159-02
- Loctite 2400, 50 ml, part no. 01791-25
- Loctite 2700, 50 ml, part no. 01791-27
Note
Öhlins does not offer technical support to end users. Therefore it is strongly recommended to have the cartridge kit installed by a professional motorcycle or suspension workshop. Authorized Öhlins dealers and Service Centers can be found HERE.
Fits the following vehicles
-
Harley-Davidson Road Glide Custom CVO FLTRXSE (FL3), 2017 – 2022
- Type: FL3
- ABE (Germany)
- Does not fit bikes with 21″ front wheel
-
Harley-Davidson Road Glide Special FLTRXS (FL3), 2017 – 2022
- Type: FL3
- ABE (Germany)
- Does not fit bikes with 21″ front wheel
-
Harley-Davidson Road Glide ST FLTRXST (FL3), 2022 –
- Type: FL3
- ABE in preparation (Germany)
- Does not fit bikes with 21″ front wheel
-
Harley-Davidson Road Glide Ultra CVO FLTRUSE (FL3), 2017 – 2022
- Type: FL3
- ABE (Germany)
- Does not fit bikes with 21″ front wheel
-
Harley-Davidson Road Glide Ultra FLTRU (FL3), 2017 – 2020
- Type: FL3
- ABE (Germany)
- Does not fit bikes with 21″ front wheel
-
Harley-Davidson Street Glide CVO FLHXSE (FL3), 2017 – 2022
- Type: FL3
- ABE (Germany)
- Does not fit bikes with 21″ front wheel
-
Harley-Davidson Street Glide FLHX(S) (FL3), 2017 – 2022
- Type: FL3
- ABE (Germany)
- Does not fit bikes with 21″ front wheel
-
Harley-Davidson Street Glide ST FLHXST (FL3), 2022 –
- Type: FL3
- ABE in preparation (Germany)
- Does not fit bikes with 21″ front wheel
-
Harley-Davidson Ultra Glide Classic FLHTCU (FL3), 2017 – 2022
- Type: FL3
- ABE in preparation (Germany)
- Does not fit bikes with 21″ front wheel
Part number
FKS 228, 08790-xx
Type Code
NIX22
Data
| Position: | front |
|---|---|
| Spring series: | 08790-xx |
| Recommended oil: | 01309-01 |
| Oil level mm: | 140 |
| Packaging unit: | pair |
Download
- Mounting Instruction Öhlins Motorcycle FKS 228 (English) (923,6 KB)
- Mounting Instruction Öhlins Motorcycle FKS 228 (German) (897,6 KB)
- Owners Manual Öhlins Motorcycle NIX22 Cartridge Kit (English) (1.116,1 KB)
- Owners Manual Öhlins Motorcycle NIX22 Cartridge Kit (German) (1.275,7 KB)
- Safety data sheet Öhlins Motorcycle oil 01309 (English) (349,6 KB)
- Safety data sheet Öhlins Motorcycle oil 01309 (German) (351,8 KB)
