HT-6262-VB

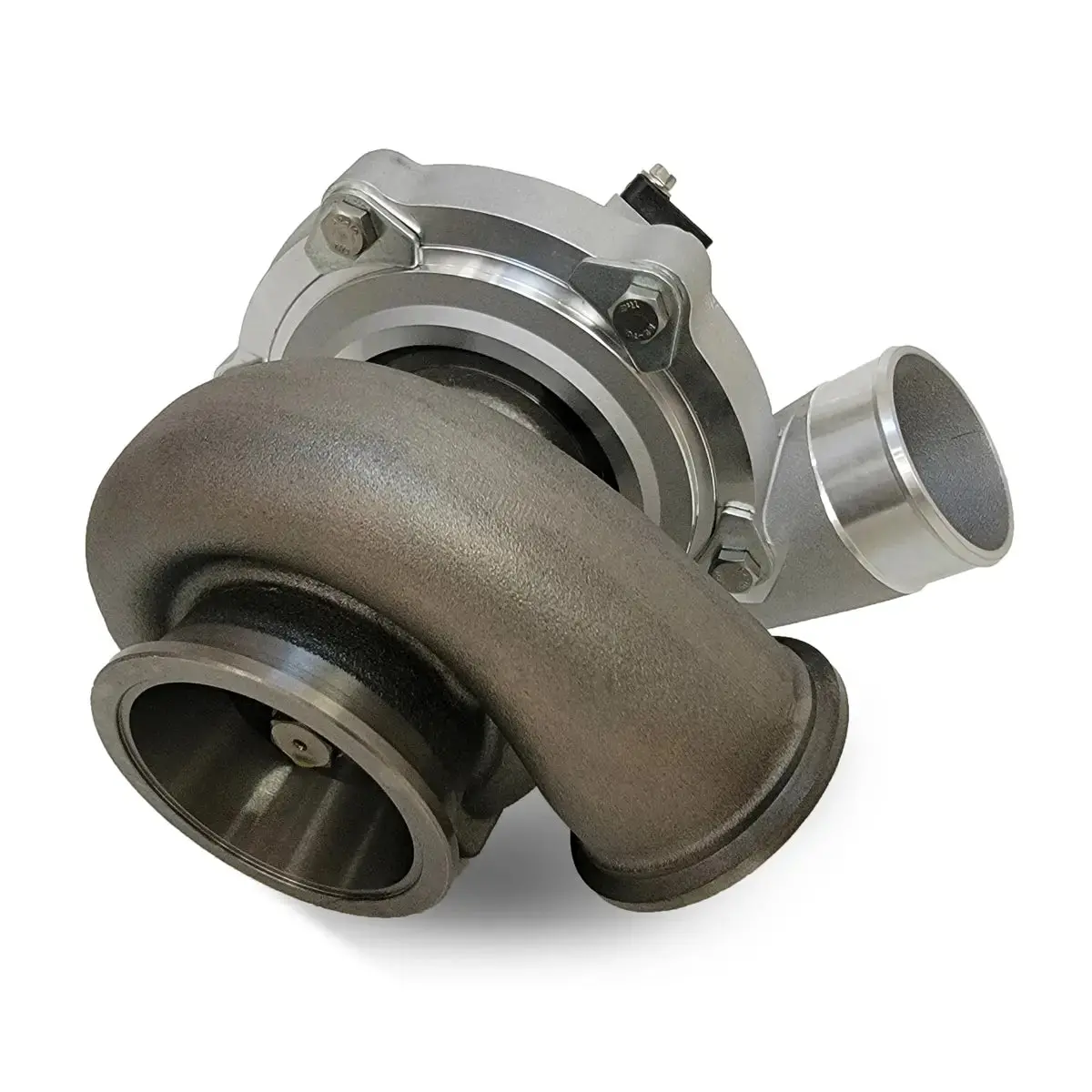

The Hellion 6262 v-band turbo is the benchmark unit for our game changing sleeper turbo systems. These turbos feature a 62mm compressor wheel and industry standard journal bearing housing. The turbine has a 62mm exducer and uses a v-band inlet and 3″ v-band outlet housing. This unit comes standard with a 2-year warranty.
Description
Features
- 62mm compressor wheel.
- 4” inlet / 2.5” outlet / .70 A/R compressor cover with and anti-surge ports standard.
- 62mm turbine wheel.
- Journal bearing center section.
- Integrated speed sensor port.
- V-Band inlet / 3″ v-band outlet / .82 A/R single scroll cast iron turbine housing.
Specifications
| Max HP | 700 |
|---|---|
| Bearing Type | Journal |
| Compressor Inducer (MM) | 62 |
| Ported Shroud | Yes |
| Turbine Exducer (MM) | 62 |
| Turbine Inlet | V-Band |
| Turbine Outlet | V-Band |
| Turbine A/R | 0.81 |
| Turbine Scroll | Single |
