Description
953234-5001S
Features
G-XRACE UNIVERSAL PERFORMANCE TURBOCHARGER
GXR47-76 | 76.6mm Turbine
- XBoost technology increases power and performance. This turbocharger is raged up to 1700 horsepower
- Increased efficiency at high flow rates provides cooler, denser air to boost power capability
- Lightweight aluminum backplate to reduce turbo weight
- Flange-style speed sensor port for easy installation and turbo speed monitoring for optimal performance and turbo life
- GXR47-76 953234-5001S is for use in Ultra Street drag race class with the 76.6mm compressor inducer rule
- Patented design*
Competitor Frame Size Reference: 7688 (76mm compressor inducer / 88mm turbine exducer)
Read About Turbo System Optimization: A guide to setting up your turbocharger
WARNING: Maximum allowable turbocharger speed is 102.5krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)

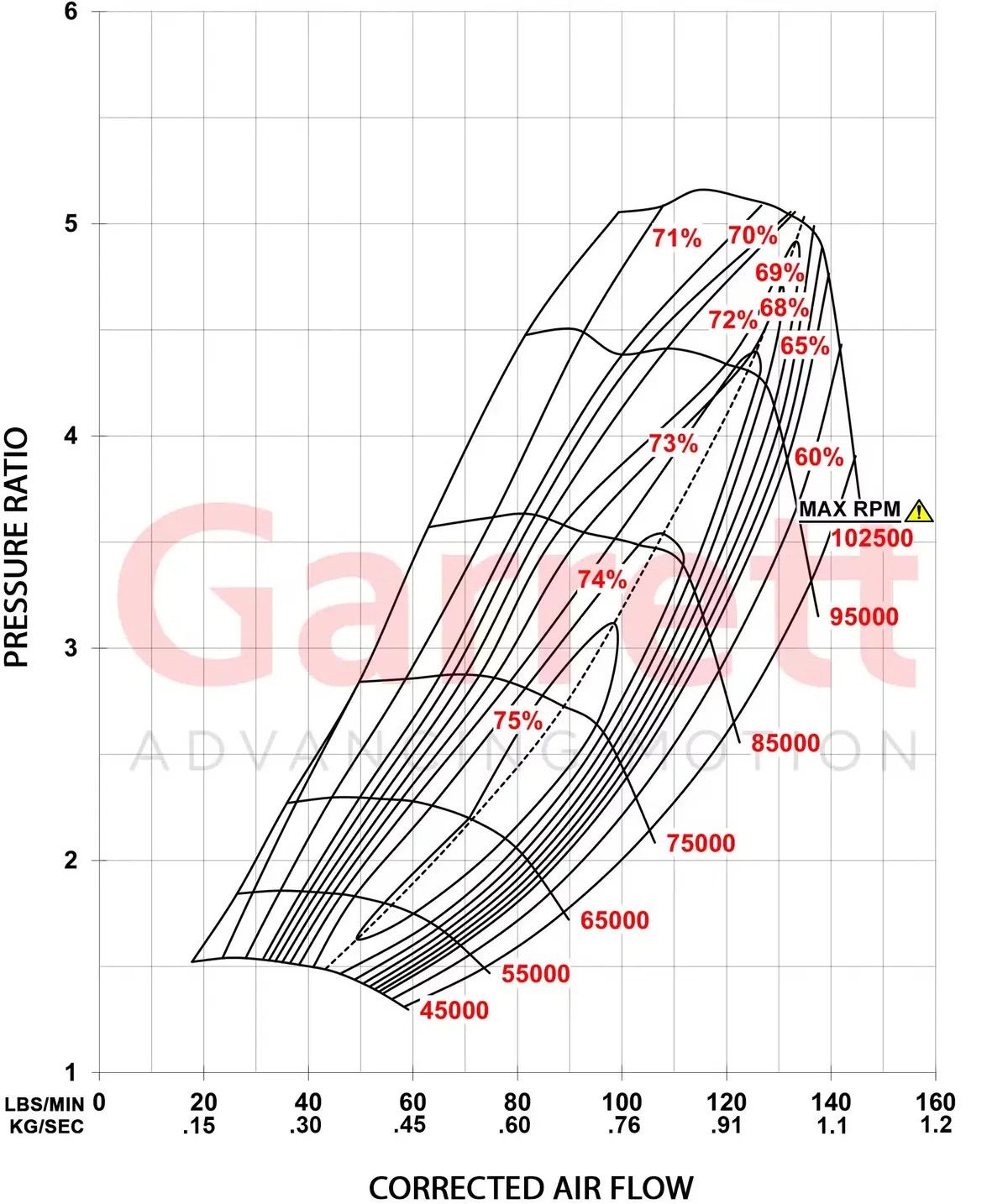

Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
